| Specifications |
| Model |
CS-C8C Lite (1080P) |
| Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) |
| 6mm @ F1.6, view angle: 55° (Horizontal), 66° (Diagonal) |
| PT Angle |
Pan: 352°, Tilt: 95° |
| Minimum Illumination |
0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (data is obtained from EZVIZ laboratories) |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Black & White Night Vision |
30 m / 100 ft. |
| Video & Audio |
| Max Resolution |
1920 × 1080 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main Profile |
| Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
2Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps,11g :54Mbps,11n :72Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Storage |
| Local Storage |
Micro SD card slot (Max. 256G) |
| Cloud Storage |
EZVIZ Cloud Storage |
| Function |
| Smart Alarm |
AI-powered human shape detection |
| Customized Alert Area |
Supports |
| Audio |
Supports mic |
| General Function |
Anti-flicker, dual-stream, heart beat, password protection, watermark |
| General |
| Operating Conditions |
-30°C ~ 60°C(-22°F to 140°F ), humidity 95% or less (non-condensing) |
| IP Grade |
Weatherproof Design |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
MAX. 6 W |
| Dimensions |

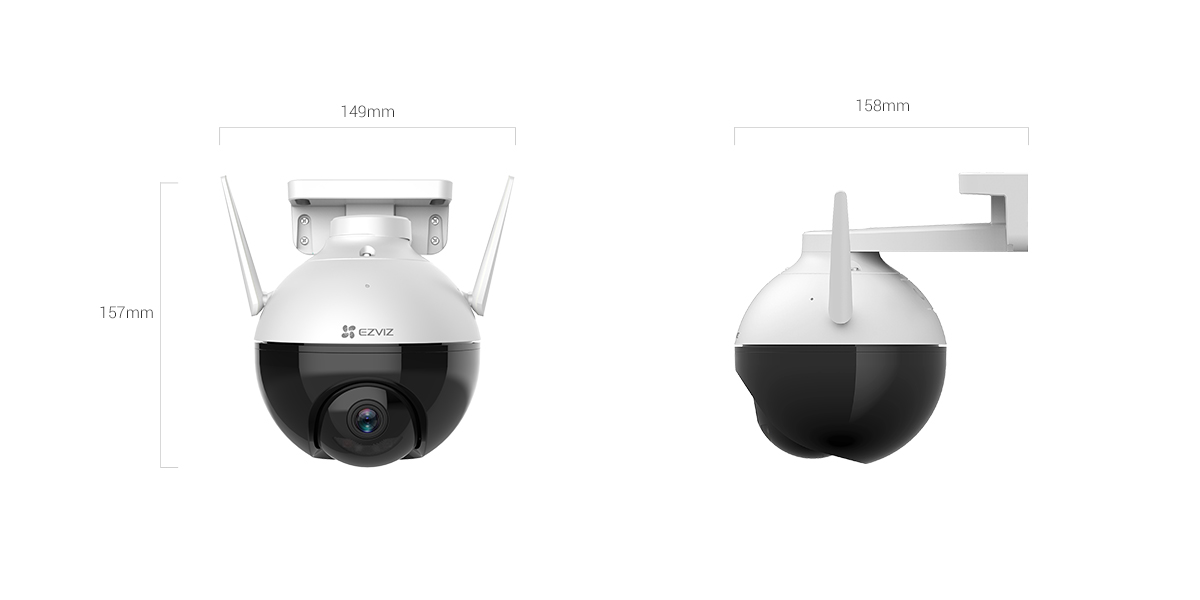

158 × 157 × 149 mm (6.22 × 6.18 × 5.87 inch) |
| Packaging Dimensions |
197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch) |
| Weight (With Package) |
885 g (31.22 oz) |
| Net Weight |
510 g (17.99 oz) |
