SDT8C842-8P-FA-APV-0280
,

SDT8C842-8P-FA-APV-0280

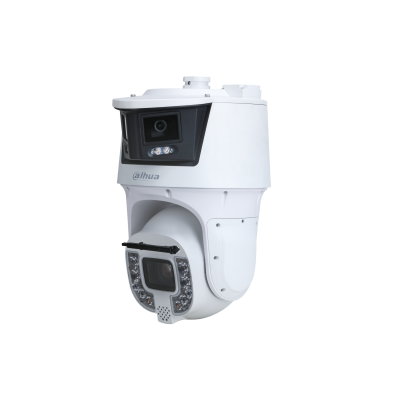

8MP 42x Starlight Dual Light Network Panoramic PTZ Camera

> Panorama: 2 × 4 MP 1/1.8″ CMOS image sensor; Detail: 8MP 1/1.8″ CMOS image sensor.

> 42 x optical zoom.

> Max. 25/30fps@4K.

> IR distance up to 300 m.

> Auto tracking.

> Perimeter protection.

> Face detection.

> Wiper.

> IP67.

> Sound and light alarm.

> PoE++(802.3bt).

Categories: , Tags: , , , , ,
selector-pcimg

Product Selector

Camera
Image Sensor Panorama: 1/1.8″ CMOS
Detail: 1/1.8″ CMOS
Pixel Panorama: 8 MP
Detail: 8 MP
Max. Resolution Panorama: 5376 (H) × 1520 (V)
Detail: 3840 (H) × 2160 (V)
ROM Detail: 8 GB; Panorama: 8 GB
RAM Detail: 4 GB; Panorama: 8 GB
Electronic Shutter Speed Panorama: 1s–1/30000s
Detail: 1s–1/30000s
Scanning System Progressive
Min. Illumination Panorama:
Color: 0.001 lux@F1.0
B/W: 0.0001 lux@F1.0
0 lux (IR light on)
Detail:
Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (IR light on)
Illumination Distance Panorama: 30 m (white light)
Detail: 300 m (IR)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR; Off
Illuminator Number Panorama: 4 (white light)
Detail: 6 (IR), 2 (white light)
Wiper Wiper
Lens
Focal Length Panorama: 2.8 mm
Detail: 5.5 mm–231 mm
Max. Aperture Panorama: F1.0
Detail: F1.4-F4.5
Field of View Panorama: H: 200°; V: 50°
Detail: H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4
Optical Zoom Detail: 42 ×
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.2 m (0.66 ft)
Iris Control Detail: Auto; manual
DORI Distance Detect Observe Recognize Identify
4620 m (15157.48 ft) 1824.9 m

(5987.20 ft)

 924 m

(3031.50 ft)

 462 m

(1515.75 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Panorama: Tilt: 5°–17°
Detail:
Pan: 0°–360° endless
Tilt: -30° to +90°
Manual Control Speed Detail: Pan: 0.1°/s–240°/s

Tilt: 0.1°/s–100°/s
Preset Speed Detail:
Pan: 240°/s
Tilt: 100°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Pattern; Preset; Scan; Tour
PTZ Protocol DH-SD
Pelco-P/D (Auto recognition)
Intelligence
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots; motor vehicle attributes; non-motor vehicle attributes; human body attributes; face attributes
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection;
abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
Face Recognition Supports face detection, face bounding box, optimization, capturing snapshots, uploading high-quality face snapshots, enhancing face images and face exposure. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo.
Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces.
Auto Tracking Yes
Active Deterrence
Light Warning White light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 22 sound alarms and supports importing custom sound alarms.
Video
Video Compression H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Stream); Smart H.264+; H.264M
Streaming Capability 3 streams
Resolution Panorama:
8M (5376 × 1520); 2688 × 752; 1344 × 368; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Detail:
8M (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
Video Frame Rate Panorama:
Main stream: (5376 × 1520) @(1–25/30 fps)
Sub stream 1: (1344 × 368)/D1/VGA/CIF @(1–25/30 fps)
Sub stream 2: (2688 × 752)/1080p/1.3M/720p @(1–25/30 fps)
Detail:
Main stream: 8M (3840 × 2160)/4M(2560 × 1440)/3M(2304 × 1296)/1080 P/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF @(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate Panorama:
H264: 8 Kbps–16384 Kbps
H265: 3 Kbps–13568 Kbps
Detail:
H264: 8 Kbps–16384 Kbps
H265: 3 Kbps–13568 Kbps
Day/Night Panorama: Color; B/W
Detail: Auto (ICR)
BLC Yes
WDR Panorama: DWDR
Detail: 120 dB
HLC Yes
White Balance Panorama and Detail:
Auto; indoor; outdoor; tracking; manual; sodium lamp;
natural light; street lamp
Gain Control Panorama: Auto; manual
Detail: Auto; manual
Noise Reduction Panorama: 2D NR; 3D NR
Detail: 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Detail: EIS
Defog Panorama: Electronic
Detail: Optical
Digital Zoom 16x
Image Rotation 180°
S/N Ratio Panorama: ≥ 55 dB
Detail: ≥ 55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port RJ-45 (100/1000 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Interoperability CGI; GA/T 1400; GB/T28181; SDK; ONVIF (Profile S&G&T)
Streaming Method Unicast; Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management Software C9100; 5 Series NVR; ICC-B8900; SmartPSS Plus; IVSS
Mobile Client IOS; Android
Certification
Certifications CE: EN55032 EN55035 EN61000-3-2 EN61000-3-3;EN50130-4
FCC: FCC part15B
Port
RS-485 1 (baud rate: 1200 bps–9600 bps)
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT, bare wire)
Alarm Input 7 (on-off value input: 0–5 VDC)
Alarm Output 2
Alarm Linkage Capture; recording; send email; preset; tour; pattern;
alarm digital input
Alarm Event Motion; tampering detection; audio detection;
network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Alarm I/O 7/2
Audio I/O 1/1
Power
Power Supply 36 VDC, 2.25 A ± 25%

PoE++(802.3bt)
Power Consumption Basic: 32 W
Max: 58 W (panoramic camera illuminator, detail camera IR illuminator, light warning, speaker, heated glass, intelligence and PTZ)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤ 95%
Protection IP67
Structure
Product Dimensions 318.2 mm × 262.0 mm × 415.0 mm (12.53″ × 10.31″ × 16.34″) (L × W × H)
Net Weight 8.8 kg (19.40 ft)
Gross Weight 11.12 kg (24.52 ft)
