SDT7C424-4F-ZBZJ-APV-0400
,

SDT7C424-4F-ZBZJ-APV-0400

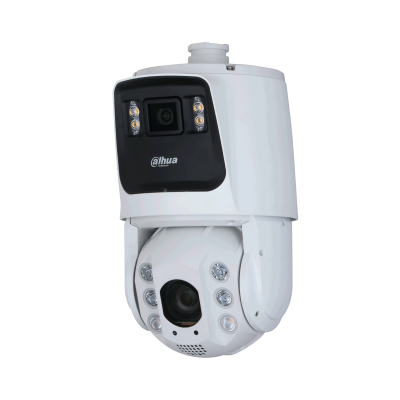

4MP 24x Starlight IR WizMind Network Panoramic + PTZ Camera

> Panoramic: 1/1.8″ 4 Megapixel F1.0 STARVIS™ CMOS

Detail: 1/2.8″ 4 Megapixel STARVIS™ CMOS

> 24× optical zoom, 16× digital zoom

> Starlight+ technology

> Max. 25/30 fps@4 MP

> IR distance up to 150 m

> Auto-tracking

> Perimeter protection

Categories: , Tags: , , , , ,
Camera
Image Sensor Panoramic: 1/1.8″ CMOS

Detail: 1/2.8″ CMOS
Pixel Panoramic: 4 MP

Detail: 4 MP
Max. Resolution Panoramic: 2560 (H) × 1440 (V)

Detail: 2560 (H) × 1440 (V)
ROM Panoramic: 4 GB

Detail: 256 MB
RAM Panoramic: 1 GB

Detail: 1 GB
Electronic Shutter Speed Panoramic: 1/1 s–1/30,000 s

Detail: 1/1 s–1/30,000 s
Scanning System Progressive Scanning
Min. Illumination Panoramic:

Color: 0.001 lux@F1.0

B/W: 0.0001 lux@F1.0

0 lux (white light on)

Detail:

Color: 0.005 lux@F1.6

B/W: 0.0005 lux@F1.6

0 lux (IR light on)
Illumination Distance 30 m (98.44 ft) (white light)

150 m (49.13 ft) (IR)
Illuminator On/Off Control Zoom Prio; manual; auto; off
Illuminator Number Panoramic: 4x white light

Detail: 2x white light; 4x IR
Lens
Focal Length Panoramic: 4 mm

Detail: 4.8 mm–115 mm
Max. Aperture Panoramic: F1.0

Detail: F1.6–F3.6
Field of View Panoramic:

H: 95°; V: 52.5° ; D: 116°

Detail:

H: 53.1°–3.4°; V: 30.4°–1.95°; D: 59.3°–3.9°
Optical Zoom 24×
Focus Control Auto; Semi-Auto; Manual
Close Focus Distance Panoramic: 0.2 m (0.66 ft)

Detail: 0.5 m–5 m (1.64 ft–16.4 ft)
Iris Control Panoramic: Fixed

Detail: Auto; manual; fixed
DORI Distance Detect Observe Recognize Identify
Panorama:
102 m
(334.66 ft)
Detail:
1,928 m
(6325.46 ft)		 Panorama:
40.8 m
(133.86 ft)
Detail:
771.2 m
(2530.18 ft)		 Panorama:
20.4 m
(66.9 ft)
Detail:
385.6 m
(1265.09 ft)		 Panorama:
10.2 m
(33.46 ft)
Detail:
192.8 m
(632.55 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 360° endless

Tilt: –20° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°–160°/s

Tilt: 0.1°–120°/s
Preset Speed Pan: 240°/s; Tilt: 200°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset, Tour, Scan, Track
PTZ Protocol DH–SD

Pelco–P/D (auto recognition)
Intelligence
Face Detection Yes
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
Auto Tracking Yes
Video
Video Compression H.265, H.264B, H.264M, H.264H ,MJPEG, smart H.265, smart H.264
Streaming Capability 3 streams
Resolution Panoramic:

4M (2560 X 1440) , 1080p (1920 × 1080) , 1.3M (1280 × 960) , 720p (1280 ×720) , D1 (704 × 576/704 × 480) , CIF (352 × 288/352 × 240)

Detail:

4M (2560 X 1440) , 1080p (1920×1080) , 1.3M (1280 × 960) , 720p (1280 ×720) , D1 (704 × 576/704 × 480) , CIF (352 × 288/352 × 240)
Default Bit Rate with Default Resolution 3072 Kbps (2560 × 1440, H.265)
Video Frame Rate Panoramic:

Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)

sub stream 1: D1/CIF (1–25/30 fps)

sub stream 2: 720p/CIF (1–25/30 fps)

Detail:

Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)

sub stream 1: D1/CIF (1–25/30 fps)

sub stream 2: 720p/CIF (1–25/30 fps)
Bit Rate Control Constant Bite Rate; Variable Bite Rate
Video Bit Rate H. 265: 1024 Kbps–7936 Kbps
Day/Night Panoramic: Color/B/W

Detail: Auto (ICR)/Color/B/W
BLC Panoramic: Yes

Detail: Yes
WDR Yes
HLC Panoramic: Yes

Detail: Yes
White Balance Panoramic: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Panoramic: Auto; manual

Detail: Auto; manual
Noise Reduction Panoramic: 2D NR; 3D NR

Detail: 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Panoramic: Electronic Defog

Detail: Electronic Defog
Flip 180°
S/N Ratio ≥ 55 dB
Certification
Certifications CE: EN55032/EN55024/EN50130-4

FCC: 47 CFR FCC Part15, Subpart B,

Class A ANSI C63.4-2014
Audio
Audio Compression G.711a; G.711Mu; G.726; MPEG2–Layer2; G722.1
Network
Network Port RJ–45 (10/100 Base–T)
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP;UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP;UPnP; ICMP; SNMP; IGMP; ARP;RTCP; RTP; PPPoE; RTMP; Bonjour;SAMBA; NFS
Interoperability ONVIF (Profle S&G&T); CGI; SDK
Streaming Method Unicast/Multicast
User/Host 20
Storage FTP; Micro SD card (128 GB)
Browser IE7 and later versions

Chrome 42 and earlier versions

Firefox 52 and earlier versions

Safari
Management Software DMSS; DSS Pro
Mobile Client IOS, Android, iPhone, iPad, Windows Phone
Port
Alarm I/O 2/1
Audio I/O 1/1
Two-way Audio Yes
Alarm Linkage Capture; preset; tour; pattern; recording; triggering on–off value output; audio; sending email
Alarm Event Motion/tampering detection, audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 36 VDC/2.23 A ± 25% (included)
Power Consumption Basic: 20 W

Max. (illuminator + heater + PTZ working + sound and light alarm): 45 W
Environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity ≤ 95%
Protection IP66; TVS 6000 V lightning proof, surge protection and voltage transient protection
Structure
Casing Plastic + aluminum alloy
Product Dimensions 358 mm × Φ202 mm (14.09″ × 7.95″)
Packaging Dimensions 510.0 mm × 312.0 mm × 312.0 mm (21.42″ × 7.70″ × 6.75″) (L × W × H)
Net Weight 5.6 kg (12.35 lb)
Gross Weight 7.15 kg (15.77 lb)
