SDT5X425-4Z4-FA-2812
,

SDT5X425-4Z4-FA-2812

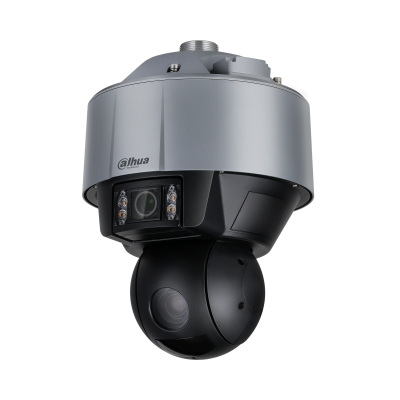

4MP Starlight IR WizMind Network Dual-PTZ Camera

> Dual PTZ system, dual vari-focal lens.

> 1/1.8″ 4Megapixel CMOS.

> Powerful 25× optical zoom.

> Starlight technology.

> Max. 25/30 fps@4M.

> Deep-learning-based auto tracking and perimeter protection.

> Support Hi-PoE.

> H.265 Encoding.

> IP67.

Categories: , Tags: , , , , ,
Camera
Image Sensor Panorama: 1/1.8″ CMOS
Detail: 1/1.8″ CMOS
Pixel Panorama: 4 MP
Detail: 4 MP
Max. Resolution Panorama: 2688 (H) × 1520 (V)
Detail: 2688 (H) × 1520 (V)
ROM 8 GB
RAM 4 GB
Electronic Shutter Speed Panorama: 1 s–1/30,000 s
Detail: 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Panorama:
Color: 0.001 lux@F1.3
B/W: 0.0001 lux@F1.3
Detail:
Color: 0.001 lux@F1.6
B/W: 0.0001 lux@F1.6
0 lux (IR light on)
Illumination Distance Panorama (white light):
30 m (98.43 ft)
Detail (IR light):
100 m (328.08 ft)
Illuminator On/Off Control Panorama: Zoom Prio; Manual; Auto; Off
Detail: Zoom Prio; Manual; Auto; Off
Illuminator Number Panorama: 4 white lights
Detail: 4 IR lights
Lens
Focal Length Panorama: 2.8 mm–12 mm
Detail: 5.4 mm–135 mm
Max. Aperture Panorama: F1.3–F2.0
Detail: F1.6–F4.0
Field of View Panorama: H: 99.2°–45.8°; V: 59.7°–27.0°; D: 110.4°–51.7°
Detail: H: 58°–3.5°; V: 35°–2°; D: 64°–4°
Optical Zoom Panorama: 4×
Detail: 25×
Focus Control Auto; Semi-Auto; Manual
Close Focus Distance Panorama: 1 m–2.5 m (3.28 ft–8.20 ft)
Detail: 0.5 m–7 m (1.64 ft–22.97 ft)
Iris Control Panorama: Auto
Detail: Auto
DORI Distance Detect Observe Recognize Identify
Panorama:
129 m (423.23 ft)
Detail:
1,724 m (5,656.17 ft)		 Panorama:
51.3 m (168.31 ft)
Detail:
690 m (2,263.78 ft)		 Panorama:
25.4 m (83.33 ft)
Detail:
345 m (1,131.89 ft)		 Panorama:
12.2 m (40.03 ft)
Detail:
172 m (564.30 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Panorama:
Pan: 0° to 360° endless
Tilt: 0° to 30°
Detail:
Pan: 0° to 305°
Tilt: –10° to 90°
Manual Control Speed Panorama: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–25°/s
Detail: Pan: 0.1°/s–400°/s; Tilt: 0.1°/s–200°/s
Preset Speed Panorama: Pan: 100°/s; Tilt: 50°/s
Detail: Pan: 360°/s; Tilt: 200°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Scan 5
Power-off Memory Yes
Idle Motion Preset; Scan; Tour
PTZ Protocol DH-SD
Pelco-P/D (auto recognition)
Intelligence
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes

extraction
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Recognition Yes
Video
Video Compression H.265; H.264B; H.264; H.264H; MJPEG; smart H.265+; smart H.264+
Streaming Capability 3 streams
Resolution Panorama:
4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
Detail:
4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640× 480); CIF (352 × 288)
Video Frame Rate Panoramic: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Detail: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 512 Kbps–13056 Kbps
H.265: 204 Kbps–7936 Kbps
Day/Night Panorama: Auto (ICR)
Detail: Auto (ICR)
BLC Yes
WDR Panorama: 120 dB
Detail: 120 dB
HLC Yes
White Balance Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; Manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio Panorama: ≥ 55 dB
Detail: ≥ 55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP
Interoperability CGI; ONVIF Profile S&G&T; GB/T28181
Streaming Method Unicast; Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB)
Browser IE9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management Software DSS; NVR; Smart PSS
Mobile Client iOS; Android
Port
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT,bare wire)
Two-way Audio Yes
Alarm Linkage Capture; preset; tour; recordings on SD card; alarm digital input; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; illegal access
Alarm I/O 2/1
Audio I/O 1/1
Power
Power Supply 36 VDC, 2.23 A (± 25%)
Hi-PoE
Power Consumption Basic: 21 W
Max.: 40 W (PTZ, zoom, focus, IR light, white light, and smart plan enabled)
Environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity ≤ 95% (RH)
Protection IP67; TVS 8000 V lightning protection; surge protection; voltage transient protection
Structure
Product Dimensions 385 mm × Φ277 mm (15.16″ × Φ10.91″)
Net Weight 9 kg (19.84 lb)
Gross Weight 13.8 kg (30.42 lb)
