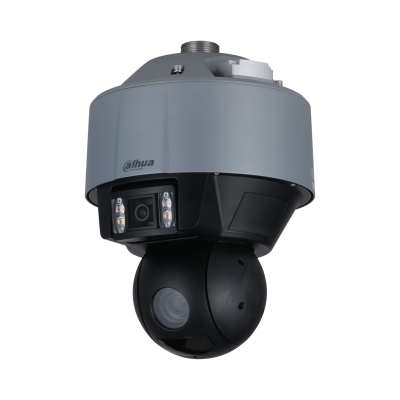

SDT5X405-4F-FA-0600
,

SDT5X405-4F-FA-0600

4MP 5 Starlight IR NETWORK PTZ CAMERA

> 1/1.8″ 4Megapixel STARVIS™ CMOS.

> 5x optical zoom.

> Starlight technology.

> Max. 50/60fps@4M.

> IR distance up to 100 m.

> Auto-tracking.

> Perimeter protection.

> Face recognition.

> Metadata.

> IP67.

Categories: , Tags: , , , , ,
selector-pcimg

Product Selector

Camera
Image Sensor Panorama: 1/1.8″ CMOS
Detail: 1/1.8″ CMOS
Pixel Panorama: 4 MP
Detail: 4 MP
Max. Resolution Panorama: 2688 (H) × 1520 (V)
Detail: 2688 (H) × 1520 (V)
ROM 8 GB
RAM 4 GB
Electronic Shutter Speed Panorama: 1 s–1/30,000 s
Detail: 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Panorama:
Color: 0.001 lux@F1.0
B/W: 0.0001 lux@F1.0
Detail:
Color: 0.001 lux@F1.3
B/W: 0.0001 lux@F1.3
0 lux (IR light on)
Illumination Distance Panorama:
30 m (98.43 ft) (white light)
Detail:
100 m (328.08 ft) (IR)
Illuminator On/Off Control Panorama:
Zoom Prio; Auto; Manual; Off
Detail:
Zoom Prio; Auto; Manual; Off
Illuminator Number Panorama: 4 (white light)
Detail: 4 (IR)
Lens
Focal Length Panorama: 6 mm
Detail: 10 mm–50 mm
Max. Aperture Panorama: F1.0
Detail: F1.3–F1.5
Field of View Panorama: H: 57°; V: 31°; D: 66°
Detail: H: 45°–10°; V: 26°–5.7°; D: 51°–11.5°
Optical Zoom Panorama: NA
Detail: 5×
Focus Control Auto; semi-auto; manual
Close Focus Distance Panorama: 0.2 m (0.66 ft)
Detail: 0.5 m–2 m (1.64 ft–6.56 ft)
Iris Control Panorama: Fixed
Detail: Auto; manual
DORI Distance Detect Observe Recognize Identify
115.9 m (380.25 ft) 46.3 m (151.90 ft) 23.2 m (76.12 ft) 11.6 m (38.06 ft)
642.8 m (2108.92 ft) 257.1 m (843.50 ft) 128.6 m (421.92 ft) 64.3 m (210.96 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Panorama:
Pan: 0° to 360° endless
Tilt: 0° to +30°
Detail:
Pan: 0° to +305°
Tilt: –10° to +90°
Manual Control Speed Panorama:
Pan: 0.1°/s–100°/s
Tilt: 0.1°/s–25°/s
Detail:
Pan: 0.1°/s–120°/s
Tilt: 0.1°/s–50°/s
Preset Speed Panorama:
Pan: 100°/s
Tilt: 50°/s
Detail:
Pan: 360°/s
Tilt: 200°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Scan 5
Power-off Memory Yes
Idle Motion Preset;Scan;Tour
PTZ Protocol DH-SD
Pelco-P/D (Auto recognition)
Intelligence
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots
Extracts 10 attributes from motor vehicles, 6 attributes from non-motor vehicles, 8 attributes from human bodies and 6 attributes from human faces.
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; Linking the detail camera to track targets
Face Recognition Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces.
Auto Tracking Yes
Video
Video Compression H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; MJPEG(Sub Stream); H.264M
Streaming Capability 3 streams
Resolution Panorama:
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Detail:
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Panorama:
Main stream: 4M/3M/1080p/1.3M/720p@(1–50/60 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Detail:
Main stream: 4M/3M/1080p/1.3M/720p@(1–50/60 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 2816 kbps–13056 kbps
H265: 1024 kbps–7936 kbps
Day/Night Panorama:
Color/B/W
Detail:
Auto (ICR)/Color/B/W
BLC Yes
WDR Panorama: 140 dB

Detail: 140 dB
HLC Yes
White Balance Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Panorama: Electronic (EIS)
Detail: Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio Panorama: ≥55 dB
Detail: ≥55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol TCP;FTP;RTMP;IPv6;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;DDNS;UPnP;ICMP;UDP;IGMP;HTTP;DHCP;SMTP;SNMPv1/v2c/v3(MIB-2);Qos;RTSP;ARP
Interoperability CGI;ONVIF
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB)
Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management Software DSS7016D-I;Cloud Connection;5 Series NVR;ICC-B8900;SmartPSS Plus;DSS-C9100;IVSS
Port
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT,bare wire)
Alarm Linkage Capture; preset; tour; recordings on SD card; alarm digital input; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; unauthorized access detection
Alarm I/O 2/1
Audio I/O 1/1
Power
Power Supply 36 VDC, 2.23 A ± 25%

Hi-PoE
Power Consumption Basic: 23.5 W
Max.: 45 W (illuminator + intelligence + PTZ)
Environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity ≤95%
Protection IP67, TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 280.2 mm × 277.0 mm × 385.0 mm (11.03″ × 10.91″ × 15.16″)
Net Weight 9 kg (19.84 lb)
Gross Weight 12.7 kg (27.99 lb)
