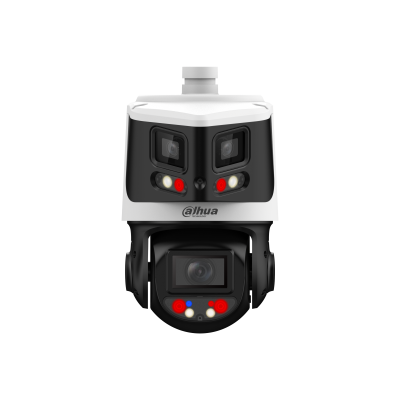

SDT3E410-8P-MB-A-PV1

8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

> Panorama: Outputs 180° wide angle splicing image

> Detail: 1/2.8″”4Megapixel STARVIS™ CMOS

> 10x optical zoom

> Starlight technology

> Max. 25/30 fps@8M

> IR distance up to 70 m

> Warm light illumination distance up to 30 m

> Active deterrence

> Auto tracking Lite

> Perimeter protection

> Face detection

> SMD4.0

> IP66

> Smart dual light

Categories: , Tags: , , , , ,
Camera
Image Sensor Overview channel: 1/2.8″ CMOS;

Detail channel: 1/2.8″ CMOS
Pixel Overview channel: 8 MP;

Detail channel: 4 MP
Max. Resolution Overview channel: 5376 (H) × 1520 (V);

Detail channel: 2560 (H) × 1440 (V)
ROM Overview channel: 4 GB;

Detail channel: 4 GB
RAM Overview channel: 2 GB;

Detail channel: 1GB
Electronic Shutter Speed Overview channel: 1 s–1/100,000 s;

Detail channel: 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Overview channel:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
1 s–1/30,000 s
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Illumination Distance Overview channel:
30 m (98.43 ft) (IR);
30 m (98.43 ft) (white light)
Detail channel:
70 m (229.66 ft);
30 m (98.43 ft) (white light)
Illuminator On/Off Control Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off
Illuminator Number Overview channel: 2 (IR light); 2 (white light);

Detail channel: 2 (Dual light fusion); 2 (IR light)
Lens
Focal Length Overview channel: 2.8 mm;

Detail channel: 4 mm–40 mm
Max. Aperture Overview channel: F1.6;

Detail channel: F1.6-F3.6
Field of View Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°
Optical Zoom Overview channel: NA;

Detail channel: 10×
Focus Control Auto; manual; semi-auto
Close Focus Distance Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft)
Iris Control Overview channel: NA;

Detail channel: NA
DORI Distance Detect Observe Recognize Identify
500 m

(1640.42 ft)

 197.5 m

(647.97 ft)

 100 m

(328.08 ft)

 50 m

(164.04 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 345°;
Tilt: -10° to +90°
Manual Control Speed Overview channel: NA;

Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s
Preset Speed H: 80°/s; V: 50°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people)
Face Detection Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
SMD SMD 4.0
SMD Yes
Active Deterrence
Light Warning Red and blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.
Video
Video Compression H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)
Streaming Capability 3 streams
Resolution Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240);
Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Overview channel:

Main stream: 5376 × 1520 @(1–25/30 fps)
Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps);
Detail channel:

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate Overview channel: H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel: H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps
Day/Night Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic
BLC Yes
WDR Overview channel: DWDR
Detail channel: 120 dB
HLC Yes
White Balance Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio
Noise Reduction Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)
Defog Overview channel: Electronic
Detail channel: Electronic
Digital Zoom Overview channel: NA
Detail channel: 16×
Image Rotation Overview channel: NA
Detail channel: 180°
S/N Ratio Overview channel: ≥55dB
Detail channel: ≥55dB
Audio
Audio Compression Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA
Network
Network Port RJ-45 (100 Base-T)
Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certification
Certifications CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471
Port
Audio Input 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm Input 1 (on-off value input: 0–5 VDC)
Alarm Output 1 channel
Alarm Linkage Capture; recording; send email; preset; alarm digital output; audio; warning light
Alarm Event Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply 12 VDC, 3 A ± 10%
PoE+(802.3at)
Power Consumption Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Protection TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection
Structure
Product Dimensions 140.3 mm × 181.7 mm × 238.8 mm (5.52″ × 7.15″ × 9.40″) (L × W × H)
Net Weight 2.17 kg (4.78 lb)
Gross Weight 3.1 kg (6.83 lb)
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
