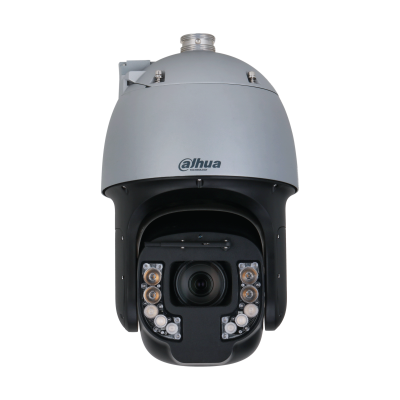

SD8C848PA-HNF
,

SD8C848PA-HNF

8M 48x Starlight IR WizMind Network PTZ Camera

> 1/1.8″ 8Megapixel STARVIS™ CMOS
> 48x optical zoom
> Starlight technology
> Max. 25/30 fps@8M
> IR distance up to 250 m
> H.265 encoding
> Two-way audio
> IR and white light, three night view modes
> IP67
> Auto-tracking
> Perimeter protecton
> Face recogniton
Categories: , Tags: , , , , ,
Camera
Image Sensor 1/1.8″ CMOS
Pixel 8 MP
Max. Resolution 3840 (H) × 2160 (V)
ROM 8 GB
RAM 2 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (dual light fusion on)
Illumination Distance 80 m (262.46 ft) (dual light fusion-only white light on)
250 m (1,476.38 ft) (dual light fusion-only IR light on)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR; Off
Illuminator Number 10 (dual light fusion)
Wiper Yes
Lens
Focal Length 6.25 mm–300 mm
Max. Aperture F1.4–F4.5
Field of View H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9°
Optical Zoom 48×
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.5 m–2 m (1.64–6.56 ft)
Iris Control Auto; manual
DORI Distance Detect Observe Recognize Identify
6,000 m (19,685.04 ft) 2,381 m (7,811.68 ft) 1,200 m (3,937.01 ft) 600 m (1,968.50 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –20° to +90°
Manual Control Speed Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–100°/s
Preset Speed Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Pattern; Tour; Scan
PTZ Protocol DH-SD
Pelco-P/D (auto recognition)
Intelligence
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
IVS (Perimeter Protection) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Recognition Yes
Video
Video Compression H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264
Streaming Capability 3 streams
Resolution 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1-25/30 fps)
Sub stream 2: 1080p/960p/720p (1-25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3328 kbps–16384 kbps
H.265:1280 kbps–9984 kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Optical
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio ≥55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP
Interoperability ONVIF (Profle S&G&T); GB/T28181; CGI
Streaming Method Unicast; Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE 7 and later versions
Chrome 45 and later versions
Firefox 52ESR and earlier versions
Safari
Management Software Smart PSS; DSS; IVSS
Mobile Client iOS; Android
Port
Analog Output 1 channel (CVBS output, BNC)
RS-485 1 (baud rate: 1200 bps–115200 bps)
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT, bare wire)
Two-way Audio Yes
Alarm Input 7 (on-off value input: 0–5 VDC)
Alarm Output 2
Alarm Linkage Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 36 VDC, 2.23 A (± 25%), Hi-PoE
Power Consumption Basic: 18 W
Max.: 33 W (illuminator + PTZ)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection IP67; TVS 8000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 442 mm × Φ262 mm (17.40″ × Φ10.31″)
Net Weight 10.3 kg (22.71 lb)
Gross Weight 12.5 kg (27.56 lb)
