SD8A3833GA-HNV
,

SD8A3833GA-HNV

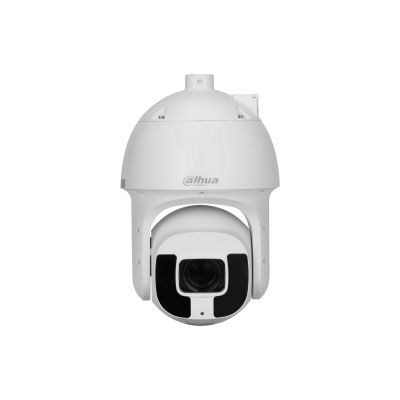

8MP 33x Starlight+ IR Network PTZ Camera

> 1/1.8″ 8Megapixel STARVIS™ CMOS.

> 33x optical zoom.

> Starlight+ technology.

> IR distance up to 500 m.

> Auto tracking 3.0.

> Perimeter protection.

> Face detection.

> Video Metadata.

> SMD 4.0.

> IP67, IK10.

Categories: , Tags: , , , , ,
Camera
Image Sensor 1/1.8″ CMOS
Pixel 8 MP
Max. Resolution 3840 (H) × 2160 (V)
ROM 4 GB
RAM 2 GB
Electronic Shutter Speed 1 s–1/30,000 s
Scanning System Progressive
Min. Illumination 0.001 lux@F1.6 (Color, 30 IRE);
0.0001 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Illumination Distance 500 m (1640.42 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 10 (IR light)
Lens
Focal Length 6.5 mm–214.5 mm
Max. Aperture F1.6–F4.9
Field of View H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4°
Optical Zoom 33 ×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1 m–8 m (3.28 ft–26.25 ft)
Iris Control Auto; manual; iris prio
DORI Distance Detect Observe Recognize Identify
3,808 m (12493.44 ft) 1504.2 m (4935.04 ft) 761.6 m

(2498.69 ft)

 380.8 m (1249.34 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 360° endless; Tilt: –30° to +90°, auto flip 180°
Manual Control Speed Pan: 0°/s–240°/s;
Tilt: 0°/s–100°/s
Preset Speed Pan: 0°/s–240°/s;
Tilt: 0°/s–100°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Pattern; Preset; Scan; Tour
PTZ Protocol DH-SD Pelco-P/D (Auto recognition)
Intelligence
Video Metadata Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles.
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking.
Face Detection Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto Tracking Auto tracking 3.0
SMD SMD4.0
Quick Pick Yes
Active Deterrence
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Play time can be set from 1 to 10.
Video
Video Compression H.264H;H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability 3 streams
Resolution 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 8M/4M/1080p/960p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/960p/720p@(1-25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 128 Kbps–16,384 Kbps
H265: 51 Kbps–11,776 Kbps
Day/Night Auto; Color; B/W; Electronic
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual; gain prio
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic Image Stabilization (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view;
Multiple colors available
S/N Ratio ≥55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;QoS;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;RTSP;ARP
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; SDK
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Browser IE 9 and later versions;
Chrome 41 and later versions;
Firefox 52 and later versions;
Safari 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certification
Certifications CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Port
RS-485 1 (baud rate: 1200 bps–9600 bps)
Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT,bare wire)
Alarm Input 7 (on-off value input: 0–5 VDC)
Alarm Output 2 channels
Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital output; audio
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 36 VDC, 2.23 A ± 25% (included);
HI-PoE
Power Consumption Basic: 17 W;
Max: 33 W (illuminator +Heater+ PTZ)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection TVS 8000 V lightning proof;IK10;IP67; surge protection; voltage transient protection
Structure
Product Dimensions 415.9 mm × Φ 262.0 mm (16.37″ × Φ 10.31″)
Net Weight 8.5 kg (18.74 lb)
Gross Weight 13.1 kg (28.88 lb)
