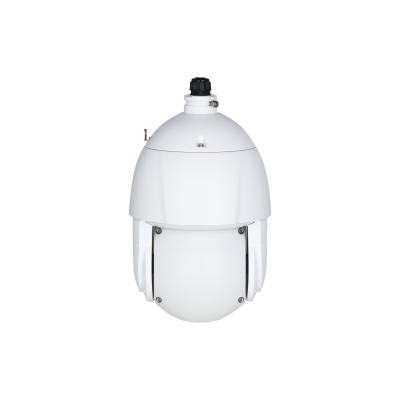

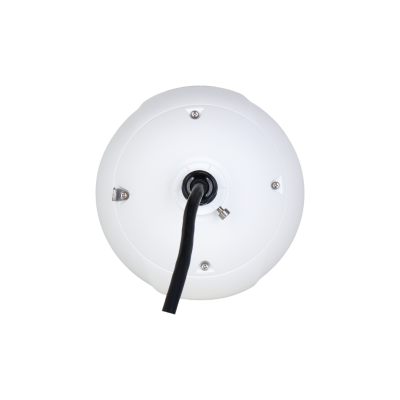

SD6C3232DB-HC

2MP 32x Starlight IR HDCVI PTZ Camera

> 1/2.8″ 2Megapixel STARVIS™ CMOS.

> Powerful 32x optical zoom.

> Starlight technology.

> 120 dB true WDR, 3D NR.

> Max. 25/30 fps@1080p, 25/30/50/60 fps@720p.

> IR distance up to 200 m.

> IP66.

Categories: , , Tags: , , ,
Camera
Image Sensor 1/2.8″ CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 256 MB
Electronic Shutter Speed 1/3 s–1/30,000 s
Scanning System Progressive
Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator)
Illumination Distance 200 m (656.17 ft) (IR)
Illuminator On/Off Control Zoom Prio; manual
Illuminator Number 6 (IR)
Lens
Focal Length 4.5 mm–144 mm
Max. Aperture F1.6–F4.0
Field of View H: 59.6°–2.8°; V: 34.1°–1.6°; D: 67.9°–3.3°
Optical Zoom 32x
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto; manual
DORI Distance Detect Observe Recognize Identify
1986.2 m (6516.43 ft) 784.6 m (2573.99 ft) 397.2 m

(1303.29 ft)

 198.6 m (651.64 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endless;
Tilt: –20° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°–240°/s;
Tilt: 0.1°–120°/s
Preset Speed Pan: 0.1°–240°/s;
Tilt: 0.1°–120°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Pattern; Preset; Scan; Tour
PTZ Protocol DH-SD
Pelco-P/D (Auto recognition)
Video
Resolution 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480)
Video Frame Rate 1080p (25/30 fps); 720p (25/30/50/60 fps)
Day/Night Yes
BLC Yes
WDR 120dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Defog Electronic
Digital Zoom 16x
Image Rotation 180°
Privacy Masking Yes
S/N Ratio ≥ 50 dB
Function
CVI Product Output Mode TVI; CVI; CVBS; AHD (CVBS is only used for debugging)
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Analog Output 1 channel (CVBS/CVI output, BNC)
RS-485 1 (baud rate range: 1200 bps–9600 bps)
Audio Input 1 channel (LINE IN, bare wire)
Alarm Input 2 (on-off value input: 0–5 VDC)
Alarm Output 1
Alarm Linkage Scan; preset; tour; pattern; alarm digital output
Alarm Event Alarm input
Power
Power Supply 24 VDC, 2.5 A ± 25%
Power Consumption Basic: 9.5 W
Max: 25 W (PTZ + illuminator)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤ 95%
Protection TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection
Structure
Product Dimensions 325.3 mm × Φ202.0 mm (12.81″ × Φ7.95″)
Net Weight 4.6 kg (10.14 lb)
Gross Weight 6.5 kg (14.33 lb)
