| RM-1602-T Specifications | |
| Digital Inputs | 16 channels, 24 VDC, sink/source type |
| On | 10 to 30 VDC |
| Off | 0 to 3 VDC |
| Input Impedance | 3 kilo-ohms (typical) |
| Common Type | 8 points per 2 COMs |
| Response Time | 10 ms |
| Isolation | 3k VDC 2k Vrms |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 7 mA @ 24 VDC |
| Wiring | I/O cable, 14 AWG (max.) |
| MTBF | 4,132,863 hrs (Standard: Telcordia SR332) |
| RM-1050-T Specifications | |
| Digital Inputs | 10 channels, 110 VDC, channel-to-channel isolation |
| On | 50 to 175 VDC |
| Off | 0 to 15 VDC |
| Input Impedance | 120 kilo-ohms (typical) |
| Response Time | 10 ms |
| Isolation | 3k VDC 2k Vrms |
| Channel-to-Channel Isolation | 2.5k VDC |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 7 mA @ 24 VDC |
| Wiring | I/O cable, 14 AWG (max.) |
| MTBF | 3,993,435 hrs (Standard: Telcordia SR332) |
| RM-2600-T Specifications | |
| Digital Outputs | 16 channels, 24 VDC, sink-type |
| Output Impedance | 120 milli-ohms (typical) |
| Current Rating | 200 mA per channel |
| Off-state Resistance | 500 kilo-ohms (typical) |
| Response Time | 10 ms |
| Over Current Protection | 2.6 A (4 channels @ 650 mA) |
| Isolation | 3k VDC 2k Vrms |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 10 mA @ 24 VDC |
| Wiring | I/O cable, 14 AWG (max.) |
| MTBF | 4,440,241 hrs (Standard: Telcordia SR332) |
| RM-3802-T Specifications | |
| Analog Inputs | 8 channels, differential |
| Input Range | 4 to 20 mA |
| Input Impendence | 120 ohms |
| Resolution | 16 bits, 0.24 μA/bit |
| Accuracy | ±0.1%, FSR @ 25°C ±0.3%, FSR @ -40°C and 75°C |
| Sampling Rate | • All channels: 12 samples/sec • Per channel: 1.5 samples/sec |
| Isolation | 3k VDC 2k Vrms |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 78 mA @ 24 VDC |
| Wiring | I/O cable, 14 AWG (max.) |
| MTBF | 1,222,361 hrs (Standard: Telcordia SR332) |
| RM-3810-T Specifications | |
| Analog Inputs | 8 channels, differential |
| Input Range | 0 to 10 VDC |
| Input Impendence | 10 mega-ohms (min.) |
| Resolution | 16 bits, 0.15 μA/bit |
| Data Format | 16-bit integer (2’s complement) |
| Accuracy | ±0.1%, FSR @ 25°C ±0.3%, FSR @ -40°C, 75°C |
| Sampling Rate | • All channels: 12 samples/sec • Per channel: 1.5 samples/sec |
| Isolation | 3k VDC 2k Vrms |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 78 mA @ 24 VDC |
| Wiring | I/O cable, 14 AWG (max.) |
| MTBF | 1,225,957 hrs (Standard: Telcordia SR332) |
| KM-2430-T Specifications | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Interface | Front cabling, M12 connector, 10/100BaseT(X) auto negotiation speed |
| Operating Temperature | -40 to 75°C (-40 to 176°F) |
| Input Current | 20 mA @ 24 VDC |
| MTBF | 3,873,592 hrs (Standard: Telcordia SR332) |
| Common Specifications | |
| • Power Requirements | |
| Input Voltage | 12 to 36 VDC |
| • Environmental Limits | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032, EN 55024 |
| EMI | FCC Part 15 Subpart B Class A, CISPR 32, CISPR 16-1-2, 16-2-1, 16-2-3, EN 61000-6-4 |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m 1400 MHz to 2100 MHz: 3 V/m 2100 MHz to 2700 MHz: 1 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); Signal: 1 kV (9-slot version) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 30 A/m |
| Rail Traffic | EN 50155*, EN 50121-3-2, EN 50121-4. Complies with a portion of EN 50155 specifications. Please contact Moxa a Moxa distributor for details. *Complies with a portion of EN 50155 specifications. |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
MOXA, Programmable Controller

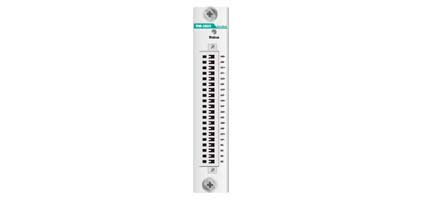

ioPAC 8020 Series Expansion Modules
Features and Benefits
- RM-1050-T: 10 channel-to-channel isolated DIs, 110 VDC, sink/source type
- RM-1602-T: 16 digital inputs, 24 VDC, sink/source type
- RM-2600-T: 16 digital outputs, 24 VDC, sink-type
- RM-3802-T: 8 analog inputs, 4 to 20 mA
- RM-3810-T: 8 analog inputs, 0 to 10 V
- KM-2430-T: 4-port unmanaged Ethernet switch module
