| • LAN | |
| Ethernet | 1 10/100 Mbps RJ45 port, with up to 3 ioLogik E1200 units daisy-chained |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, SNTP |
| • Serial | |
| Interface | 1 RS-232/422/485 (software selectable) DB9 male terminal block port |
| Parity | None, Odd, Even, Space, Mark |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Flow Control | None, Hardware, XON/XOFF |
| Baudrate | 300 to 115200 bps |
| Protocols | Modbus/RTU (master/gateway), serial tunnel mode (client/server) |
| • Inputs and Outputs | |
| Configurable DIOs (by software) | 8 channels |
| Relays | 2 channels |
| Analog Inputs | 4 channels |
| Isolation | 3k VDC 2k Vrms |
| • Digital Input | |
| Sensor Type | Wet Contact (NPN PNP), Dry Contact |
| I/O Mode | DI Event Counter |
| Dry Contact | • On: short to GND • Off: open |
| Wet Contact (DI to GND) | • On: 0 to 3 VDC • Off: 10 to 30 VDC |
| Common Type | 4 points per COM |
| Counter Frequency | 900 Hz |
| Digital Filtering Time Interval | Software configurable |
| • Digital Output | |
| Type | Sink |
| I/O Mode | DO Pulse Output |
| Pulse Output Frequency | 1 kHz |
| Over-Voltage Protection | 45 VDC |
| Over-Current Protection | 2.6 A (4 channels @ 650 mA) |
| Over-Temperature Shutdown | 160°C (min.) |
| Current Rating | 200 mA per channel |
| DIO Output Leakage Current | 3.6 mA @ 24 VDC |
| • Relay | |
| Type | Form A (N.O.) power relay |
| Contact Current Rating | Resistive Load: 1 A @ 30 VDC, 250 VAC, 110 VAC |
| Initial Insulation Resistance | 1000 micro-ohms (min.) @ 500 VDC |
| Mechanical Endurance | 5,000,000 operations |
| Electrical Endurance | 600,000 operations @ 1 A resistive load |
| Contact Resistance | 100 milli-ohms (max.) |
| Pulse Output | 0.3 Hz at rated load |
| Note: Ambient humidity must be non-condensing and remain between 5 and 95%. The relays of the ioLogik W5340-HSPA may malfunction when operating in high condensation environments below 0° Celsius. | |
| • Analog Input | |
| Type | Differential input |
| Resolution | 16 bits |
| I/O Mode | Voltage / Current (software selectable) |
| Input Range | 0 to 10 V, ±10 V, ±5 V, 0 to 20 mA, 4 to 20 mA |
| Accuracy | • ±0.1% FSR @ 25°C • ±0.3% FSR @ -30 and 70°C |
| Sampling Rate | All channels: 32 samples/sec Per channel: 8 samples/sec Single channel: 100 samples/sec |
| Input Impedance | 200k ohms (min.) |
| Built-in Resistor for Current Input | 120 ohms |
| • Power Requirements | |
| Input Voltage | 12 to 36 VDC |
| Input Current | 196 mA @ 24 VDC |
| • Physical Characteristics | |
| Wiring | I/O cable, 14 AWG (max.) |
| Dimensions | 46.8 x 135 x 105 mm (1.84 x 5.31 x 4.13 in) |
| Weight | 495 g (1.09 lb) |
| Mounting | DIN rail (standard), wall (optional) |
| • Storage | |
| Expansion Slot | Up to 32 GB SD™ memory card (SD 2.0 compatible) |
| Note: For units operating in extreme temperatures, industrial-grade, wide temperature SD cards are required. | |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 55°C (14 to 131°F) Wide Temp. Models: -30 to 70°C (-22 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. | |
| • Standards and Certifications | |
| Safety | UL 508, EN 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: Signal: 3 V/m IEC 61000-4-8 Magnetic Field: 1 A/m |
| Radio | R&TTE: EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908-1; NCC |
| Green Product | RoHS, CRoHS, WEEE |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 280,739 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 2 years* |
| Details | See www.moxa.com/warranty |
| *Because of the limited lifetime of power relays, products that use that component are covered by a 2-year warranty. | |
MOXA, Smart Remote I/O

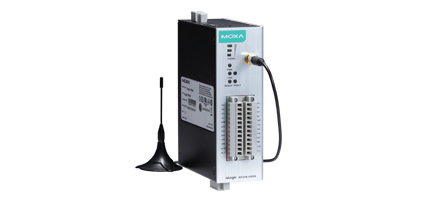

ioLogik W5340-HSPA
Features and Benefits
- Front-end intelligence with patented Click&Go control logic, up to 24 rules
- Using Active OPC Server software, SCADA systems can directly communicate with cellular devices hidden behind private IP addresses
- Active communication with Active OPC Server
- Automatically complement disconnection period data with DA-Center software
- Daisy chain up to 3 ioLogik E1200 units
- 3-in-1 RS-232/422/485 serial port for connecting to serial devices in the field
- Supports SNMPv1/v2c
- Simplify I/O management with MXIO library for Windows Linux platforms
- Wide operating temperature range of -30 to 70°C (-22 to 158°F)
