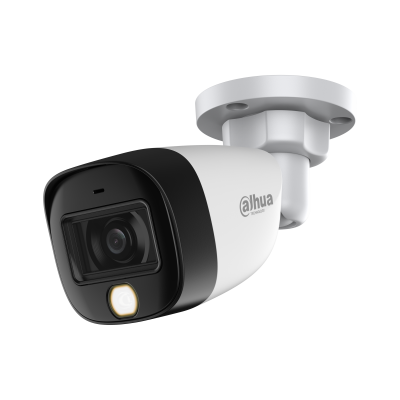

HAC-HFW1801C-IL(-A)

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 20 m (65.62 ft)

Warm light: 20 m (65.62 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (Warm light);1 (IR light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°

3.6 mm: H: 88°; V: 46°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)

3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88 m

( 288.71 ft)

35.2 m

( 115.49 ft)

17.6 m

( 57.74 ft)

8.8 m

( 28.87 ft)

3.6 mm

106.7 m

( 350.07 ft)

42.7 m

( 140.09 ft)

21.3 m

( 69.88 ft)

10.7 m

( 35.10 ft)

Video

Video Frame Rate

CVI:

PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps

TVI:

PAL: 4K@15 fps

NTSC: 4K@15 fps

AHD:

PAL: 4K@15 fps

NTSC: 4K@15 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Manual;Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic (-A)

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.2 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal front cover + plastic

Product Dimensions

161.3 mm × 69.7 mm × 70.0 mm (6.35″ × 2.75″ × 2.75″)

Net Weight

0.22 kg (0.49 lb)

Gross Weight

0.32 kg (0.71 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
