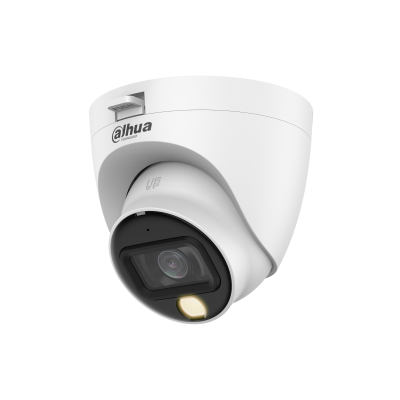

HAC-HDW1801TLQ-IL(-A)
,

HAC-HDW1801TLQ-IL(-A)

4K Smart Dual Light HDCVI Fixed-focal Eyeball Camera

* The parameters and datasheets below can only be applied to 1801-IL series.

* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

> Max. 15 fps@4K.

> 120 dB true WDR, 3D NR.
> Smart Dual Light.
> 20 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Categories: , Tags: , , , , , ,

Camera
Image Sensor

4K CMOS
Max. Resolution

3840 (H) × 2160 (V)
Scanning System

Progressive
Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s
Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)
S/N Ratio

>65 dB
Illumination Distance

IR: 20 m (65.62 ft)

Warm light: 20 m (65.62 ft)


Illuminator On/Off Control

Auto;Manual
Illuminator Number

1 (Warm light);1 (IR light)
Angle Adjustment

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°
Lens
Lens Type

Fixed-focal
Auto Focus

No
Lens Mount

M12
Focal Length

3.6 mm; 2.8 mm
Max. Aperture

F2.0
Field of View

2.8 mm: H: 106°; V: 56°; D: 125°

3.6 mm: H: 88°; V: 46°; D: 105°
Iris Control

Fixed
Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)

3.6 mm: 1.9 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 88 m

( 288.71 ft)

 35.2 m

( 115.49 ft)

 17.6 m

( 57.74 ft)

 8.8 m

( 28.87 ft)
3.6 mm 106.7 m

( 350.07 ft)

 42.7 m

( 140.09 ft)

 21.3 m

( 69.88 ft)

 10.7 m

( 35.10 ft)
Video
Video Frame Rate

CVI:

PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps

TVI:

PAL: 4K@15 fps

NTSC: 4K@15 fps

AHD:

PAL: 4K@15 fps

NTSC: 4K@15 fps

CVBS:

PAL: 960H

NTSC: 960H
Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night

Auto(ICR)/Color/B/W
BLC

BLC; HLC; WDR; HLC-Pro
WDR

120 dB
White Balance

Auto;Area white balance
Gain Control

Manual;Auto
Noise Reduction

3D NR
Illumination Mode

Smart IR&WL; WL Mode; IR Mode
Defog

Electronic defog
Mirror

Yes
Privacy Masking

Off/On (8 areas, rectangle)
Certification
Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;
Port
Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input

One channel built-in Mic (-A)
Power
Power Supply

12 VDC ± 30%
Power Consumption

Max 4.2 W (12 VDC, LED on)
Environment
Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity

<95% (RH), non-condensing
Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity

<95% (RH), non-condensing
Protection

IP67
Anti-corrosion Level

Basic Protection
Structure
Casing Material

Metal dome + plastic enclosure
Product Dimensions

Φ97.4 mm × 92.4 mm (Φ3.83″ × 3.64″)
Net Weight

0.27 kg (0.60 lb)
Gross Weight

0.36 kg (0.79 lb)
Installation

Wall mount; ceiling mount; vertical pole mount
