| Specifications |
| Model |
CS-C8PF (1080P) |
| Camera |
| Image sensor |
Dual-1/2.7″ Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8 mm @ F1.6 + 12 mm @ F1.6 |
| PT Angle |
Pan: 340°, Tilt: 80° |
| Minimum Illumination |
0.05Lux @ (F1.6 AGC ON), 0 Lux with IR |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| BLC |
Supports |
| Black & White Night |
30 m/ 98 ft |
| Video & Audio |
| Max Resolution |
1920 × 1080 |
| Frame Rate |
Max. 15fps, self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main profile |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
2Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps,11g :54Mbps,11n :72Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Function |
| Smart Alarm |
AI-powered Human Shape Detection |
| Customized Alert Area |
Supports |
| Audio |
Supports mic |
| General Function |
Anti-flicker, dual-stream, heart beat, password protection, watermark |
| Storage |
| Local Storage |
MicroSD card slot (Max. 512GB) |
| Cloud Storage |
EZVIZ cloud storage |
| General |
| Operating Conditions |
-30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing) |
| IP Grade |
Weatherproof design |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
MAX. 12W |
| Dimensions |

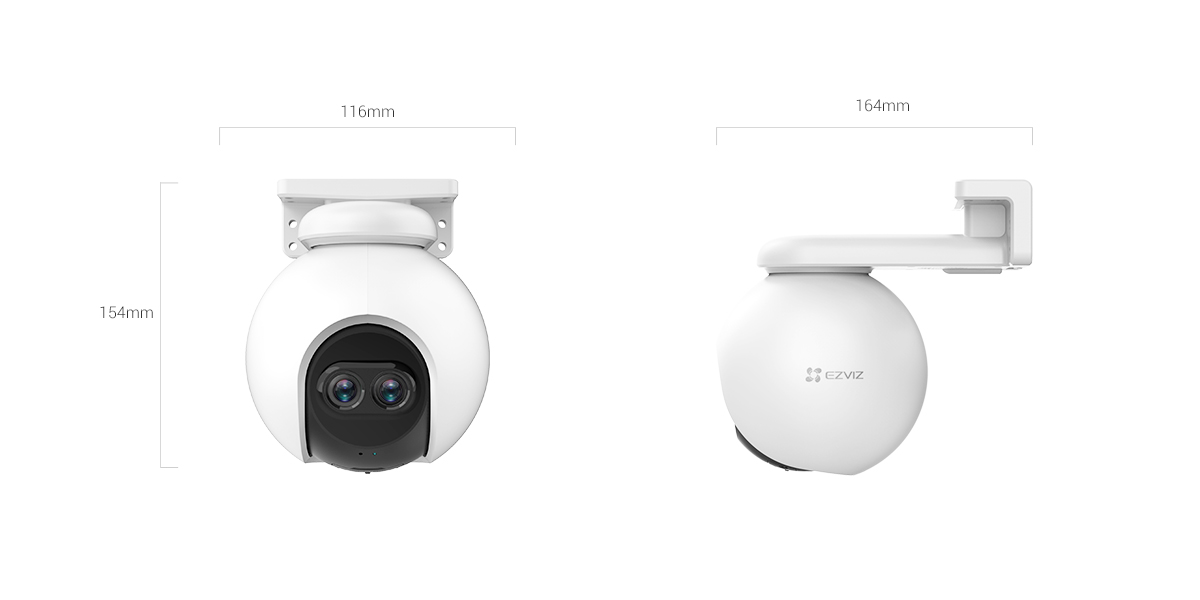

154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch) |
| Packaging Dimensions |
197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch) |
| Weight |
Product: 578 g (20.39 oz) |
| With package: 938 g (33.09 oz) |
