| Specifications |
| Model |
CS-BC2 (A0-2C2WPFB) |
| Camera |
| Image Sensor |
1/2.8” 2-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed |
Self-Adaptive Shutter |
| Lens |
4 mm @ F1.6, view angle: 100°, 85° (Diagonal), 46° (Horizontal) |
| Night Vision |
Max. 5 m / 16 ft |
| Minimum Illumination |
0.1 Lux |
| Lens Mount |
M12 |
| Day & Night |
IR-cut Filter with Auto Switch |
| DNR |
3D DNR |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Wired Network |
Not Supports |
| Minimum Network Requirement |
2Mbps |
| Video & Audio |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
15fps. Self-Adaptive during Network Transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive Bit Rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
| Function |
| Smart Alarm |
Supports |
| Customized Alert Area |
Supports |
| Two-Way Talk |
Supports |
| Storage |
| Local Storage |
MicroSD card slot for local storage (Max. 256 GB) |
| Cloud Storage |
EZVIZ Cloud Storage |
| General |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing) |
| Power Supply |
DC 5V/2A (Purchased Separately) |
| Battery Capacity |
2000 mAh |

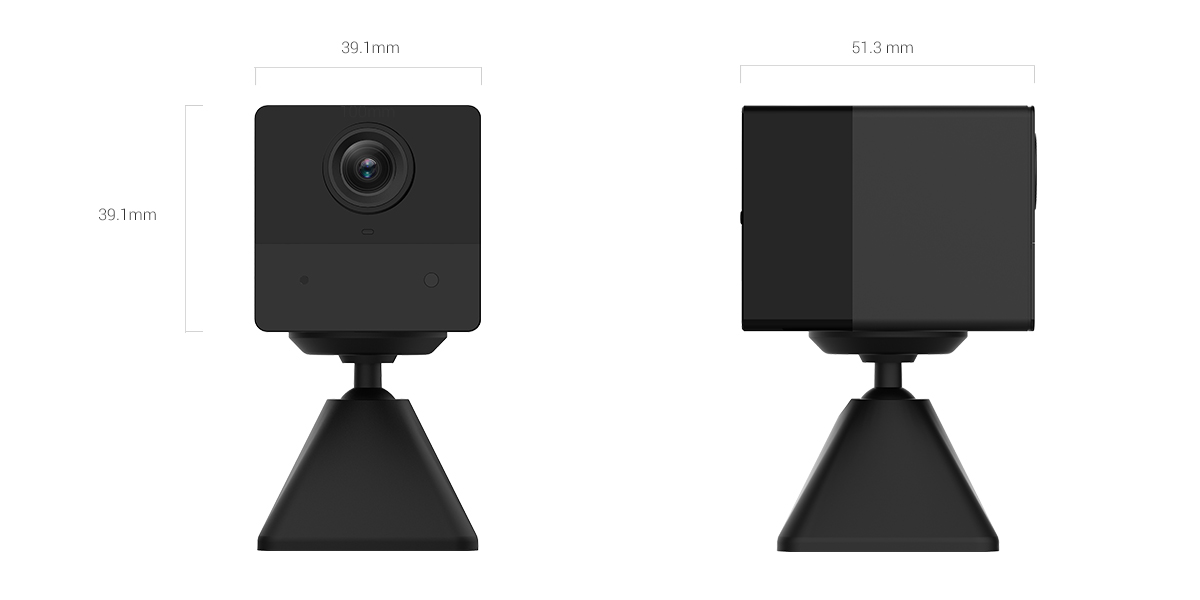

| Dimensions |
51.3 × 39.1 × 39.1 mm (2.0 × 1.5 × 1.5 inch) |
| Packaging Dimensions |
126 × 91 × 50 mm (5.0 × 3.6 × 2.0 inch) |
| Bare Weight |
Without bracket: 85.6 g (3.02 oz) |
