| Specifications |
| Model |
CS-BC1-B3 |
| System Parameters |
| Processor |
High-Performance Embedded SOC Processor |
| Operating System |
Linux |
| Camera Parameters |
| Image sensor |
1/2.8” 2-Megapixel Progressive Scan CMOS Sensor |
| Lens |
2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal) |
| Lens Mount |
M12 |
| Night Vision |
IR Distance:10m, IR-cut filter with auto-switching |
| Video Parameters |
| Video Compression |
H.265 |
| Max. Resolution |
FHD 1920 x 1080 |
| Frame Rate |
15fps. Self-Adaptive during network transmission |
| DNR |
3D DNR |
| WDR |
DWDR |
| Audio Parameters |
| Audio Input |
Built-in omnidirectional microphone |
| Audio Output |
Built-in loudspeaker |
| Audio Quality |
Noise suppression |
| Camera Event |
| Sensor |
PIR Motion Detection Sensor |
| Alarm |
Customized Alert Area |
| Siren |
105 dB built-in siren |
| Camera Network Parameters and Storage |
| Wireless |
Built-in 2.4G Wi-Fi |
| Network Configuration |
AP Pairing |
| Minimum Network Requirement |
1Mbp |
| Local Storage |
Support MicroSD card up to 256 GB in Base Station |
| Cloud Storage |
EZVIZ Cloud Storage |
| Base Station Parameters |
| Camera pairing |
Support up to 4 BC1 cameras |
| Buttons |
1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET) |
| Siren |
125 dB built-in siren |
| Local Storage |
MicroSD card slot on the base station (up to 256 GB) |
| Antenna |
2.4G: 2 internal @ 3dB |
| Indicator |
RGB 3 LED Indicator; 1 network Indicator |
| USB |
Do not support |
| Network Interface |
1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface. |
| Wireless Interface |
Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n. |
| Power |
12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V |
| General |
| Operating Conditions |
-20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing) |
| Power Supply |
12900mAh Rechargeable Lithium Battery or 5V DC |
| Power Consumption |
Max. 5W |
| IP Grade |
IP 66 |

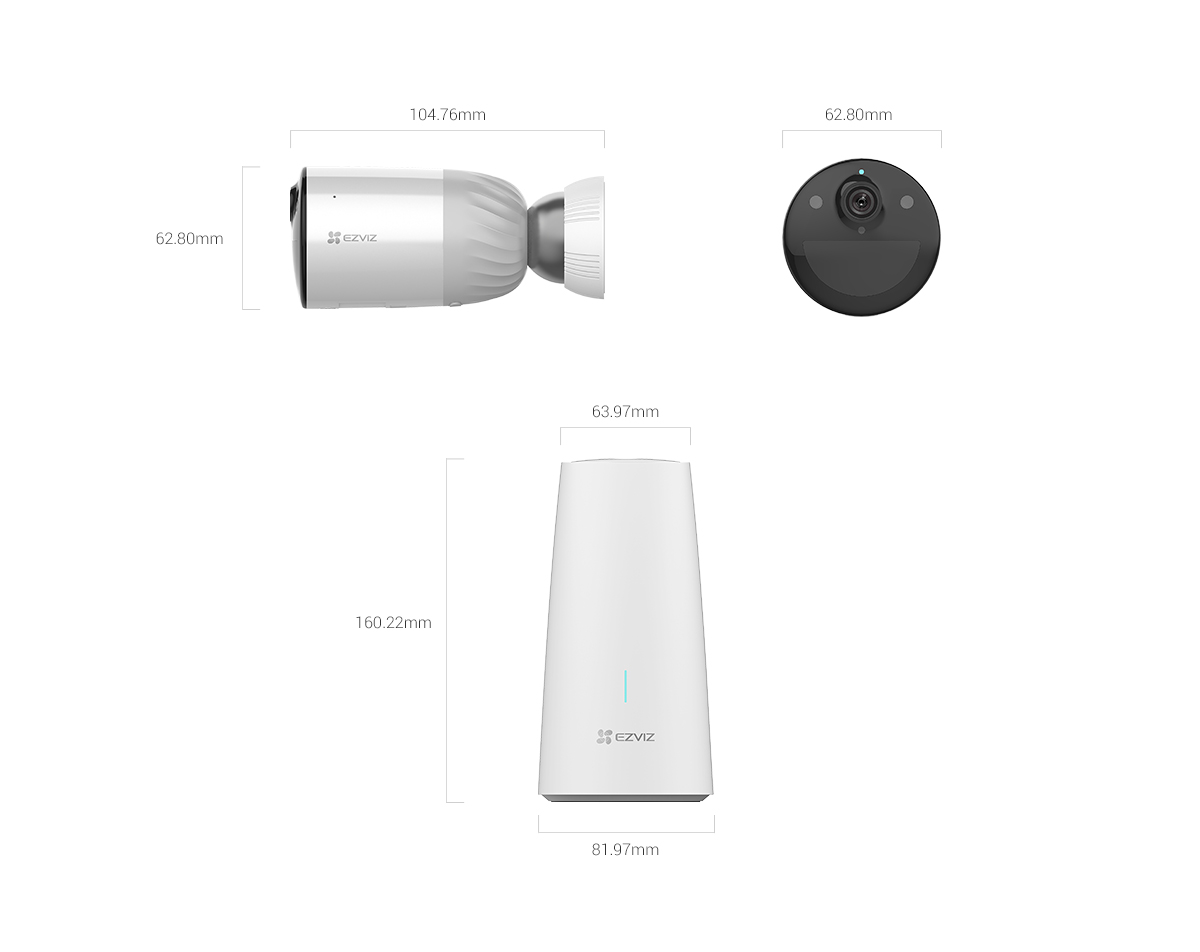

| Dimensions |
Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch) |
| Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch) |
| Packaging Dimensions |
293.00 x 288.00 x 180.00 mm (11.53 x 11.33 x 7.08 inch) |
| Weight |
2441 g (86 oz) |
