Indoor / Outdoor
|
Outdoor
|
|
---|---|---|
Image sensor
|
1/3 CMOS
|
|
Min. Illumination Color (lx)
|
0.02
|
|
Min. Illumination B/W (lx)
|
0.01 / 0 (w/IR-LED)
|
|
Maximum Resolution
|
HD (720p / 1,280x 960)
|
|
Maximum FPS
|
60
|
|
Super Dynamic
|
Yes
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
Color/BW
|
ICR
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
–
|
|
IR LED
|
Yes
|
|
Image Stabilizer
|
–
|
|
Corridor Mode
|
Yes
|
|
Privacy Zone
|
8
|
|
iA (Intelligent Auto)
|
Yes
|
|
Intelligent VMD (i-VMD)
|
Type4
|
|
Focal length
|
f=2.8mm {1/8 inches}, F2.3
|
|
Zoom ratio
|
1x
|
|
Angular field of view (16:9)
|
H: 97 deg. V: 54 deg.
|
|
Angular field of view (4:3)
|
H: 97 deg. V: 72 deg.
|
|
Panning Range
|
-45 – +45 deg.
|
|
Tilting Range
|
0 – +90 deg.
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
Video Codec
|
H.265, H.264, JPEG
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
Smart Coding
|
Yes
|
|
Audio Support
|
Yes
|
|
Built-in microphone
|
Yes
|
|
Microphone/Line Input
|
–
|
|
Audio Output
|
–
|
|
SD memory Card Slot
|
microSDXC
|
|
External I/O Terminals
|
–
|
|
Ambient Operating Humidity
|
10-100
|
|
Vandal Resistant
|
IK10 (IEC62262)
|
|
Water and Dust Resistance
|
IP66 (IEC60529), Type 4X(UL50), NEMA 4X
|
|
ClearSight Coating / Rain Wash Coating
|
ClearSight Coating
|
|
Dehumidification device
|
–
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
MIN |
-30
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
MIN |
-22
|
|
Power Source
|
PoE
|
|
SSL device certificate
|
Yes
|
|
ONVIF Profile
|
S, G, T
|
กล้องวงจรปิด Panasonic รุ่น WV-S3511L
HD Vandal Resistant Outdoor Compact Dome Network Camera
• HD 720p 60 fps
• iA (intelligent Auto)
• Super Dynamic 134dB
• Color night vision (0.0013 to 0.02 lx)
• H.265 Smart Coding
• Built-in IR LED
• Corridor mode
Compact size HD Dome Network Camera

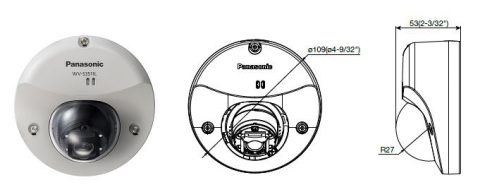

The compact body with the diameter of 109mm and the height of 53mm blends in to walls and ceilings.
Even when installing the camera in a store/shop with atmosphere, the installation can be made without destroying the atmosphere.
Extreme image quality allows evidence to be captured even under challenging conditions
– Auto Shutter speed control for fast moving onbjects with Intelligent Auto
– Sharp and clear images of a walking person day & night
– Outstanding low light performance in true color with low noise for night time applications
– Super Dynamic 134dB for backlit situations involving headlights and shadows on night streets
– Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 15 m (49 feet) irradiation distance
Extreme H.265 compression with new Smart Coding (Click here for details)
– Longer recording and less storage compared to any H.264 based compression techniques
– New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
– New “Smart Facial Coding” adds more bandwidth reduction for ID camera applications mainly capturing faces
*Region of Interest
Extreme Reliability
It is robust enough for vehicles such as buses and trains to achieve stable monitoring.
– Railway Applications : EN50155:2017 Class OT2/ST2, IEC62236-3-2
– Water and Shock Resistance : IP66, IK10
