กล้องวงจรปิด Hikvision DS-2CD4B16FWD-IZ(S)

DS-2CD4B16FWD-IZ(S)

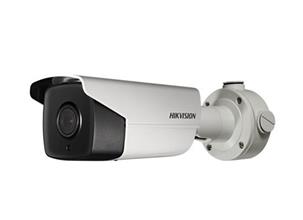

1.3 MP Low Light Smart Bullet Camera

• • 1/3” Progressive Scan CMOS
  • Auto-iris
  • 1280 × 960 @ 60fps
  • Low light
  • H.265, H.265+
  • 120dB WDR
  • IP67
  • 6 behavior analyses, 1 exception detection, and face detection

    Camera
    Image Sensor:		1/3″ Progressive Scan CMOS
    Min. Illumination:		Color: 0.005 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR B/W: 0.0005 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F1.4, AGC ON), 0 Lux with IR
    Shutter time:		1 s – 1/100,000 s
    Slow shutter:		Support
    Lens:		2.8 – 12 mm F1.4, horizontal angle of view 98.4° – 30.2°
    Lens Mount:		φ14
    Auto Iris:		DC drive
    Adjustment Range:		Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
    Day& Night:		IR Cut Filter
    Wide Dynamic Range:		120 dB
    Digital noise reduction:		3D DNR

    Compression Standard
    Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
    H.264 code profile:		Baseline Profile/Main Profile/High Profile
    Video bit rate:		32Kbps~16Mbps
    Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
    Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
    Triple Streams:		Yes

    Max. Image Resolution:		1280×960
    Sub Stream:		50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
    Frame Rate:		50Hz: 50fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
    Third Stream:		50Hz: 25fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
    Image Enhancement:		BLC/HLC/3D DNR/Defog/EIS
    Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
    Target Cropping:		Support
    ROI:		Support 4 fixed region for each stream, and dynamic face tracking
    Picture Overlay:		LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    Day/Night Switch:		Auto/Schedule/Triggered by Alarm In (-S)

    Network
    Network Storage:		microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
    Alarm Trigger:		Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
    Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    General Function:		One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
    System Compatibility:		ONVIF (Profile S, Profile G),ISAPI

    Interface
    Audio:		With –S model: 1 input (line in), 1 output
    Communication Interface:		1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S)
    Alarm:		With –S model: 1 input, 1 output (up to DC24V 1A or AC110V 500mA)
    Video Output:		1Vp-p Composite Output (75 Ω, BNC)
    On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
    Reset Button:		Yes

    Audio
    Environment Noise Filtering:		Support
    Audio I/O:		Support dual audio track, stereo
    Audio Sampling Rate:		16kHz / 32kHz / 44.1kHz / 48kHz

    Smart Feature-set
    Behavior Analysis:		Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
    Line Crossing Detection:		Cross a pre-defined virtual line
    Intrusion Detection:		Enter and loiter in a pre-defined virtual region
    Region Entrance:		Enter a pre-defined virtual region from the outside place
    Region Exiting:		Exit from a pre-defined virtual region
    Unattended Baggage:		Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
    Object Removal:		Objects removed from the pre-defined region, such as the exhibits on display.
    Exception Detections:		Scene change detection
    Recognition:		Face Detection

    General
    Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
    Power Supply:		12 V DC ± 20%, PoE (802.3at, class 4)
    Power Consumption:		12 V DC ± 20%: Max. 11.25 W/0.94 A PoE (802.3at): Max. 15 W/0.31 A
    Weather Proof:		IP67
    IR Range:		Approx. 10 to 30 meters
    Dimensions:		348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″)
    Weight:		Camera: 1900 g (4.19 lb.) With package: 2100 g (4.63 lb.)
