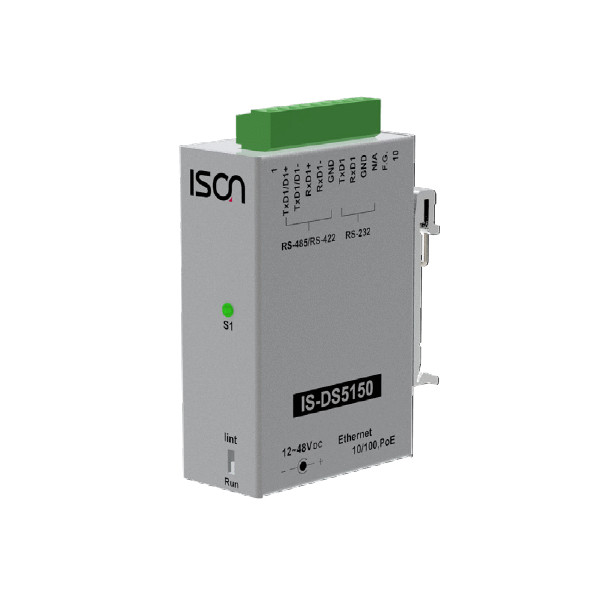

IS-DS5150 Series

The IS-DS5150 is a series of Serial-to-Ethernet device servers designed to add Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and to eliminate the cable length limitation of legacy serial communication. By using the Utility, the built-in COM port of the IS-DS5150 series can be virtualized to a standard PC COM port in Windows. Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.

Description

  • Incorporates any RS-232/422/485 serial device in Ethernet
  • Application Modes: Virtual COM, TCP Server, TCP Client
  • Virtual COM for 32/64-bit Windows XP/2003/2012/7/8/10
  • Data Packing Modes: Length, Delimiter, timeout, Char-timeout
  • Supports pair-connection (serial-bridge, serial-tunnel) Applications
  • Supports UDP responder for device discovery (UDP Search)
  • Static IP or DHCP network configuration
  • Easy firmware update via the Ethernet (BOOTP, TFTP)
  • Tiny Web server for serial and network configuration (HTTP)
  • Contains a 32-bit MCU that efficiently handles network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Redundant power inputs: PoE and DC jack
  • Allows automatic RS-485 direction control
  • 3000 VDC isolation and +/-4 kV ESD protection
  • Male DB-9 or terminal block connector for easy wiring
  • Tiny form-factor and low power consumption
  • Cost-effective device servers
  • 12~48 VDC power input
  • -25~75°C operating temperature
×
