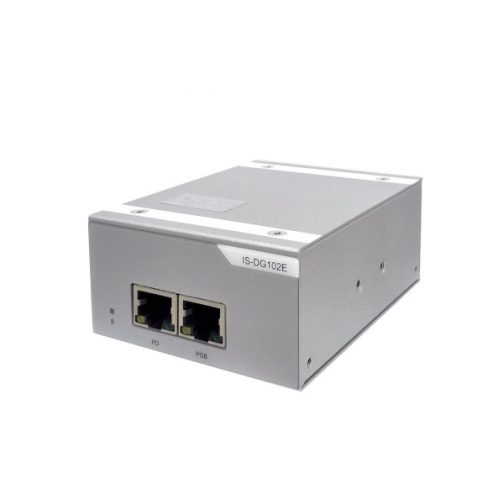

IS-DG102E Series

The IS-DG102E Series are rugged designed, high power, Gigabit Ethernet industrial PoE Extender which meets IEEE 802.3af/at standard with 15.4/30/36 Watts output and up to 57 Watts high power output (PSB port). The IS-DG102E Series can extend both power and data up to 100 m from power device (PD) which are especially good for your security system application. The special cold design technology will not only power up your PD device, but also reduce the excessive heat problem to a minimum. IS-DG102E Series have been rigorously tested for your Security, Transportation and all the other Industrial applications.

Description

  • Support PoE extender feature for PD/PSE data and power transmission
  • IEEE 802.3af/at-compliant PoE PD equipment (up to Ultra PoE 60 Watts input)
  • 1 Giga PoE PD port, and 1 Giga PoE PSE port, (Share Power Budget 60 Watts)
  • PoE support up to 57 Watts outputs
  • Layer 2 Line-Speed Switching Fabric, non-blocking
  • Rugged design, compact enclosure
  • Overload current protection
  • Reverse power protection
  • Provides increased noise immunity
  • -40°C to 75°C operating temperature
×
