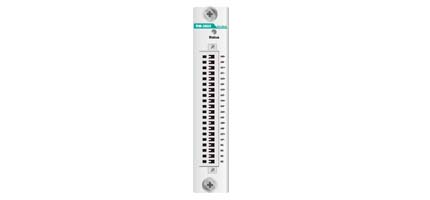

ioPAC 8020 Series Expansion Modules

Description

RM-1602-T Specifications
Digital Inputs 16 channels, 24 VDC, sink/source type
On 10 to 30 VDC
Off 0 to 3 VDC
Input Impedance 3 kilo-ohms (typical)
Common Type 8 points per 2 COMs
Response Time 10 ms
Isolation 3k VDC  2k Vrms
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 7 mA @ 24 VDC
Wiring I/O cable, 14 AWG (max.)
MTBF 4,132,863 hrs (Standard: Telcordia SR332)
RM-1050-T Specifications
Digital Inputs 10 channels, 110 VDC, channel-to-channel isolation
On 50 to 175 VDC
Off 0 to 15 VDC
Input Impedance 120 kilo-ohms (typical)
Response Time 10 ms
Isolation 3k VDC  2k Vrms
Channel-to-Channel Isolation 2.5k VDC
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 7 mA @ 24 VDC
Wiring I/O cable, 14 AWG (max.)
MTBF 3,993,435 hrs (Standard: Telcordia SR332)
RM-2600-T Specifications
Digital Outputs 16 channels, 24 VDC, sink-type
Output Impedance 120 milli-ohms (typical)
Current Rating 200 mA per channel
Off-state Resistance 500 kilo-ohms (typical)
Response Time 10 ms
Over Current Protection 2.6 A (4 channels @ 650 mA)
Isolation 3k VDC  2k Vrms
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 10 mA @ 24 VDC
Wiring I/O cable, 14 AWG (max.)
MTBF 4,440,241 hrs (Standard: Telcordia SR332)
RM-3802-T Specifications
Analog Inputs 8 channels, differential
Input Range 4 to 20 mA
Input Impendence 120 ohms
Resolution 16 bits, 0.24 μA/bit
Accuracy ±0.1%, FSR @ 25°C
±0.3%, FSR @ -40°C and 75°C
Sampling Rate • All channels: 12 samples/sec
• Per channel: 1.5 samples/sec
Isolation 3k VDC  2k Vrms
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 78 mA @ 24 VDC
Wiring I/O cable, 14 AWG (max.)
MTBF 1,222,361 hrs (Standard: Telcordia SR332)
RM-3810-T Specifications
Analog Inputs 8 channels, differential
Input Range 0 to 10 VDC
Input Impendence 10 mega-ohms (min.)
Resolution 16 bits, 0.15 μA/bit
Data Format 16-bit integer (2’s complement)
Accuracy ±0.1%, FSR @ 25°C
±0.3%, FSR @ -40°C, 75°C
Sampling Rate • All channels: 12 samples/sec
• Per channel: 1.5 samples/sec
Isolation 3k VDC  2k Vrms
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 78 mA @ 24 VDC
Wiring I/O cable, 14 AWG (max.)
MTBF 1,225,957 hrs (Standard: Telcordia SR332)
KM-2430-T Specifications
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
Processing Type Store and Forward
Interface Front cabling, M12 connector, 10/100BaseT(X) auto negotiation speed
Operating Temperature -40 to 75°C (-40 to 176°F)
Input Current 20 mA @ 24 VDC
MTBF 3,873,592 hrs (Standard: Telcordia SR332)
Common Specifications
• Power Requirements
Input Voltage 12 to 36 VDC
• Environmental Limits
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
• Standards and Certifications
Safety UL 508
EMC EN 55032, EN 55024
EMI FCC Part 15 Subpart B Class A, CISPR 32, CISPR 16-1-2, 16-2-1, 16-2-3, EN 61000-6-4
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS:
80 MHz to 1000 MHz: 10 V/m
1400 MHz to 2100 MHz: 3 V/m
2100 MHz to 2700 MHz: 1 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); Signal: 1 kV (9-slot version)
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m
Rail Traffic EN 50155*, EN 50121-3-2, EN 50121-4. Complies with a portion of EN 50155 specifications. Please contact Moxa  a Moxa distributor for details.
*Complies with a portion of EN 50155 specifications.
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
×
