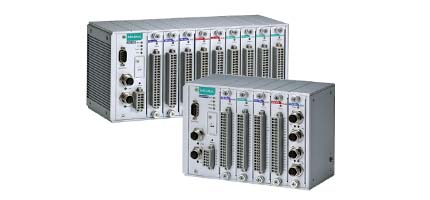

ioPAC 8020 C/C++ Series

Features and Benefits

  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
  • Supports C/C++ programming languages
  • 2-port Ethernet switch for daisy-chain topologies with bypass function
  • Modular I/O for versatility, flexibility, and scalability
  • Rugged and compact design for harsh environments
  • Wide operating temperature: -40 to 75°C (-40 to 167°F)
  • 3-in-1 RS-232/422/485 serial port
  • Up to 32 GB SDHC data logging function

Description

• Computer
CPU 32-bit ARM9 160 MHz CPU
OS Linux
Clock Real-time clock with battery backup
SDRAM 64 MB
Flash 32 MB
SD™ Slot Up to 32 GB (SD 2.0 compatible)
Note: For units operating in extreme temperatures, industrial-grade, wide-temperature SD cards are required.
• Ethernet Interface
LAN 2 x 10/100 Mbps, Ethernet bypass, RJ45  M12
Protection 1.5 kV magnetic isolation
• Serial Interface
Serial Ports RS-232/422/485 (DB9 male)
Serial Debug Port RS-232 (4-pin connector)
• Serial Ports
RS-232 TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Data+, Data-, GND
• Power Requirements
Input Voltage 12 to 36 VDC
Input Current 184 mA @ 24 VDC (without I/O modules)
Note: Compliant with EN 50155 at 24 VDC
• Physical Characteristics
Housing Aluminum
Dimensions 5-slot version: 190.9 x 135 x 100 mm (7.52 x 5.31 x 3.94 in)
9-slot version: 292.5 x 135 x 100 mm (11.52 x 5.31 x 3.94 in)
Weight 5-slot version: 2,000 g (4.41 lb)
9-slot version: 2,575 g (5.68 lb)
Mounting DIN rail (standard), wall (optional)
I/O Module Slots 5 – 9 slots (the 9th slot is reserved)
• Environmental Limits
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
Altitude Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety UL 508
EMC EN 55032/24
EMI FCC Part 15 Subpart B Class A, CISPR 32
EMS EMS:IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS:
80 MHz to 1000 MHz: 10 V/m
1400 MHz to 2100 MHz: 3 V/m
2100 MHz to 2700 MHz: 1 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); Signal: 1 kV (9-slot version)
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m
Rail Traffic EN 50155*, EN 50121-4
*Complies with a portion of EN 50155 specifications.
Green Product RoHS, CRoHS, WEEE
Note: Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time 690,214 hrs
Standard Telcordia SR332
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
×
