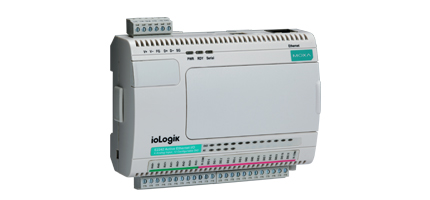

ioLogik E2214

Features and Benefits

  • Front-end intelligence with patented Click&Go control logic, up to 24 rules
  • Active communication with MX-AOPC UA Server
  • Save time and wiring cost with peer-to-peer communication
  • Supports SNMPv1/v2c/v3
  • Friendly configuration via web browser
  • Simplify I/O management with MXIO library for Windows  Linux platforms
  • Wide operating temperature range of -40 to 75°C (-40 to 167°F)

Description

• ioLogik E2214 Specifications
• Inputs and Outputs
Digital Inputs 6 channels
Relay Outputs 6 channels
Isolation 3k VDC  2k Vrms
• Digital Input
Sensor Type Wet Contact (NPN  PNP) and Dry Contact
I/O Mode DI  Event Counter
Dry Contact • On: short to GND
• Off: open
Wet Contact (DI to GND) • On: 0 to 3 VDC
• Off: 10 to 30 VDC
Common Type 3 points per COM
Counter Frequency 900 Hz
Digital Filtering Time Interval Software Configurable
• Relay Output
Type Form A (N.O.) power relay
Contact Current Rating • Inductive Load: 2 A @ 30 VDC, 250 VAC, 110 VAC
• Resistive Load: 5 A @ 30 VDC, 250 VAC, 110 VAC
Minimum permitted load 1 A @ 5 VDC
Initial Insulation Resistance 1000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance 1,000,000 operations
Electrical Endurance 100,000 operations @ 5 A resistive load
Contact Resistance 100 milli-ohms (max.)
Pulse Output 0.3 Hz at rated load
Note Ambient humidity must be non-condensing and remain between 5 and 95%. The relays of the ioLogik E2214 may malfunction when operating in high condensation environments below 0° Celsius.
• Power Requirements
Input Voltage 12 to 36 VDC
Input Current 170 mA @ 24 VDC
• MTBF (mean time between failures)
Time 307,239 hrs
Standard Telcordia SR332
• Common Specifications
• LAN
Ethernet 1 10/100 Mbps RJ45 port
Protection 1.5 kV magnetic isolation
Protocols Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
• Serial
Interface 1 RS-485-2w terminal block port
Parity None
Data Bits 8
Stop Bits 1
Flow Control None
Baudrate 1200 to 115200 bps
Protocols Modbus RTU (gateway)
• Physical Characteristics
Wiring I/O cable max. 14 AWG
Dimensions 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Weight under 250 g (0.55 lb)
Mounting DIN-rail  wall
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
Altitude Up to 2000 m
Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety UL 508
EMC EN 61000-6-2/6-4
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS:
80 MHz to 1 GHz: 10 V/m
1.4 GHz to 2 GHz: 3 V/m
2 GHz to 2.7 GHz: 1 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-
Green Product RoHS, CRoHS, WEEE
Note Please check Moxa’s website for the most up-to-date certification status.
• Warranty
Warranty Period 2 years
Details See www.moxa.com/warranty

*Because of the limited lifetime of power relays, products that use that component are covered by a 2-year warranty.

×
