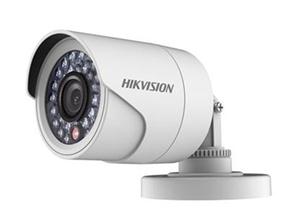

กล้องวงจรปิด Hikvision DS-2CE16D1T-IRP

DS-2CE16D1T-IRP

HD1080P IR Bullet Camera

•     2 Megapixel high-performance CMOS

•     Analog HD output, up to 1080P resolution

•     True Day/Night, Smart IR

•     Up to 20m IR distance

•     IP66 weatherproof

•     OSD menu

•     Up the Coax(HIKVISION-C Protocol)

Description

Camera
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1930(H) × 1088(V)
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Up the Coax: Support
Menu
Camera ID: On/Off (0-255)
D/N Mode: Color/ BW/ Auto/ EXT
Auto White Balance: Auto/User/Push/8000K/6000K/4200K/3000K
Private Mask: On/Off, maximum 8 zones
Motion Detection: On/Off, maximum 4 zones
BLC: On/Off
AGC: Support
Language: English/Chinese
General
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Weather Proof: IP66
IR Range: Up to 20m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: Φ70×149.5mm (Φ2.76”×5.89”)
Weight: 290g (0.64 lb)
×
