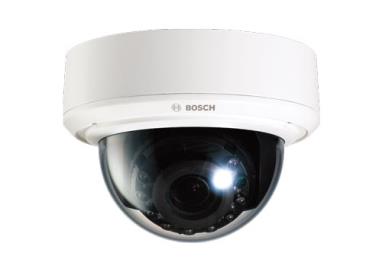

กล้องวงจรปิด Bosch Outdoor IR D/N Dome Camera

  • Excellent resolution (700 TVL)
  • Infrared for extra lighting
  • Flexible viewing field
  • Easy setup
  • Secure all-weather installation

Description

CCD Camera 1/3-inch High Sensitivity CCD
Effective pixels (HxV) 752X582 (PAL) 768×494 (NTSC)
Horizontal Resolution 700 TVL Sensor Resolution
Electronics Iris 1/50 to 1/120,000 s (PAL) 1/60 to 1/120,000 s (NTSC)
Manual shutter 1/50 (1/60), 1/100 (1/120), 1/250, 1/500, 1/700, 1/1K, 1/1.6k, 1/2.5K, 1/5K. 1/7K 1/10K, 1/30K, 1/60K, 1/120K
Output Signal 1 VPP composite video, 75 ohm
Output connection BNC connector
S/N Ratio Greater than 50 dB
Gamma 0.35, 0.45 (default), 0.6, 0.75
Lens 2.8 to 12 mm varifocal auto-iris with mechanical D/N filter
Sensitivity 0 lx (infrared on)
LEDs Intelligent 18-LED infrared array; max. 15 m (50 ft.) IR distance
Wavelength 850 nm
×
